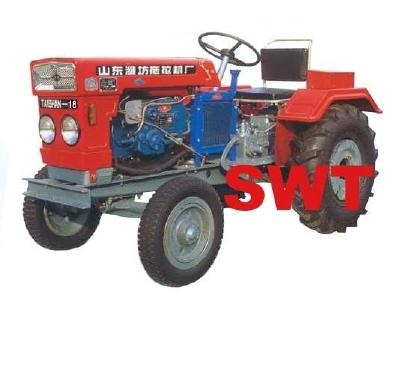

Product Details
- Size: 2400*1170*1240
- Place of Origin: China
- Brand Name: WEITUO
- Model Number: TS12-24
- Weight: 1000.000 kg
| 型号Model | TS-12 | TS-12T | TS-12B/15B | TS-15 小轮 / 大轮 Small/Big Wheel | TS-15Z/15K | TS-17/17Z/17K | TS-18/18Z /18K/18B/18BZ/18BK | TS-20/20Z /20K/20B/20BZ/20BZ | TS-22/22Z /22K/22B /22BZ/22BZ | TS-24B /24BZ/24BK | ||
| 形式Type | 4×2轮式 Wheeled Type | |||||||||||
| 额定牵引力（N ） Rated Traction | 2940 | 2940/3430 | 3430 | 3430 | 3620 | 3724 | 3822 | 3920 | 4020 | |||
| 拖拉机主要尺寸（mm)Main Dimensions of Tractor | 外廓尺寸 Owerall Dimensions | 长Lenth | 2390 | 2150 | 2410 | 2570 | 2630 | |||||
| 宽Width | 1170 | 1170 | 1410/1510 | 1170/1410/1510 | ||||||||
| 高Height | 1240 | 1240/1290 | 1290 | 1290 | 1290 | 1290/1330/1360 | ||||||
| 轴距Wheel Base | 1300 | 1300 | 1400 | 1400/1500 | ||||||||
| 轮距Tread | 前轮 Front Wheel | 900 | 900 | 1140/1240 | 900/1140/1240 | |||||||
| 后轮 Rear Wheel | 960 | 960 | 1200/1300 | 960/1200/1300 | ||||||||
| 最小离地间隙Min.Ground Clearance | 245 | 245 | 245 | 245/295 | 295 | 295 | 295 | 295/337.5/365 | ||||
| 转向半径（m ） Radius of Turning Circle | 2.6±0.2 | 2.8±0.2 | 2.8±0.2 | 2.9/3.0±0.2 | 2.8/2.9/3.0±0.2 | |||||||
| 拖拉机理论速度（Km/h)Theoretical Speeds of Tractor | Ⅰ档 Ⅰ shift | 1.89 | 1.89 | 1.89 | 2.20/2.48 | 2.48 | 2.48 | 2.48 | 2.48/2.71/2.86 | 2.48/2.71/2.86 | 2.48/2.71/2.86 | |
| Ⅱ档 Ⅱ shift | 4.40 | 4.40 | 4.40 | 5.14/5.77 | 5.77 | 5.77 | 5.77 | 5.77/6.31/6.66 | 5.77/6.31/6.66 | 5.77/6.31/6.66 | ||
| Ⅲ档 Ⅲ shift | 5.92 | 5.92 | 5.92 | 6.92/7.77 | 7.77 | 7.77 | 7.77 | 7.77/8.50/8.97 | 7.77/8.50/8.97 | 7.77/8.50/8.97 | ||
| Ⅳ档 Ⅲ shift | 6.94 | 6.94 | 6.94 | 8.11/9.11 | 9.11 | 9.11 | 9.11 | 9.11/9.96/10.51 | 9.11/9.96/10.51 | 9.11/9.96/10.51 | ||
| Ⅴ档 Ⅲ shift | 13.80 | 13.80 | 13.80 | 16.12/18.11 | 18.11 | 18.11 | 18.11 | 18.11/19.80/20.90 | 18.11/19.80/20.90 | 18.11/19.80/20.90 | ||
| Ⅵ档 Ⅲ shift | 21.97 | 21.97 | 21.97 | 25.65/28.82 | 28.82 | 28.82 | 28.82 | 28.82/31.51/33.25 | 28.82/31.51/33.25 | 28.82/31.51/33.25 | ||
| 倒档 Reverse | 3.68 | 3.68 | 3.68 | 4.29/4.82 | 4.82 | 4.82 | 4.82 | 4.82/5.27/5.56 | 4.82/5.27/5.56 | 4.82/5.27/5.56 | ||
| 发动机主要技术参数（Main Technical Specifications of Engine): | ||||||||||||
| 型号Model | 195T | S1100 | LD1100 | ZH1105W | SD1105 | LD1105 | ZH1105WA | ZH1110 | ZH1115 | LD1115 | KM130 | KM138 |
| 形式Type | 单缸、卧式、四冲程、直喷式 1-Cylinder Level 4-stroke Direct Injection | |||||||||||
| 标定转速(r/min) Rated Rev. | 2000 | 2000 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 |
| 标定功率（KW) Rated Power | 8.8 | 10.3 | 11 | 11.03 | 11.76 | 12.5 | 12.5 | 13.24 | 14.7 | 14.7 | 16.17 | 17.6 |
| 最大扭距（N.m) Max.Torque | ≥52.9 | ≥52.52 | ≥53.5 | ≥59 | ≥57.2 | ≥57.12 | ≥61 | ≥64 | ≥71.5 | ≥71.46 | ≥78.96 | ≥86.1 |
| 燃油消耗率(g/kw.h) Fuel Consumption Rate | ≤254.3 | ≤248.9 | ≤251.6 | ≤244.7 | ≤240.3 | ≤238 | ≤240.3 | ≤244.3 | ≤246.2 | ≤242 | ≤242 | ≤252 |
| 冷却方式 Cooling Method | 水冷强制循环Forced Water circulation cooling type | 水冷蒸发Water Evaporation Cooling type | 水冷强制循环Forced Water circulation cooling type | 水冷蒸发Water Evaporation Cooling type | 水冷强制循环 Forced Water circulation cooling type | 水冷蒸发Water Evaporation Cooling type | 水冷强制循环Forced Water circulation cooling type | |||||
| 启动方式 Start Method | 手摇 Hand-started | 手摇 Hand-started | 手摇 Hand-started | 手摇 Hand-started | 手摇 Hand-started | 手摇 Hand-started | 手摇 Hand-started | 手摇 Hand-started | 手摇 Hand-started | 手摇或电启动 Hand or Electric Start | 手摇或电启动 Hand or Electric Start | 手摇或电启动 Hand or Electric Start |
| 随技术进步，产品结构、参数将不断改进，恕不另行通知。 | ||||||||||||
| Structure and specification are subject to change without notice. | | |||||||||||
- Size: 2400*1170*1240
- Place of Origin: China
- Brand Name: WEITUO
- Model Number: TS12-24
- Weight: 1000.000 kg
