- Size: 2500*1170*1240
- Place of Origin: China
- Brand Name: WEITUO
- Model Number: AOYE40-65HP
- Weight: 1300.000 kg

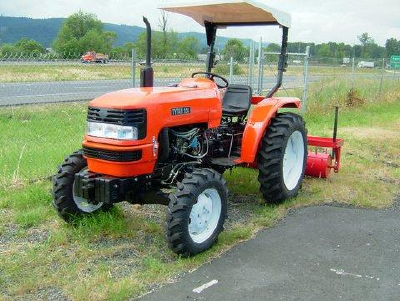

These series products are middle hp four wheel drive tractors with advanced performances at present. It has the characteristics of powerful engine, high transmission efficiency, big traction, low fuel consumption, high adaptability, compact structure and easy operation and maintenance. Joggling sleeve is equipped for its gearing shifting. 4×(2+1) gear shifts, good reliability, reasonable speed distribution, two stage clutch, two rev. PTO according with international standard, hydraulic output interface and adjustable tread, hydraulic steering. These series are portable and flexible.
（Main Technical Specifications）：
Model | AOYE450/454 | AOYE500/504 | AOYE520/524 | AOYE550/554 | ||
Type | 4 × 2/4 × 4 Wheeled Type | |||||
Dimensions of Tractor （ mm ）
| Length | 3738 （ matched 3 cylinder diesel engine ） /3868(matched 4 cylinder diesel engine | ||||
Width | 1614 | |||||
Height | 2330 | |||||
Tread |
Front Wheel | 1150~1450(normally used 1250) | ||||
Rear Wheel | 1250~1450 （ normally used1250) | |||||
Wheel Base | 1877(3cylinder diesel engine)2007(4cylinder diesel engine)/1930(3cylinder diesel engine) 2060((4cylinder diesel engine) | |||||
Min Ground Clearance | 305 | |||||
Structure Mass (kg) | 1815/2030 | 1820/2035 | 1825/2040 | 1830/2045 | ||
Engine | Model | R3105T SL4100ABT | R3108T SL4100ABT | R3108T SL4100ABT | R310T SL4100ABT | |
Type | 3-cylinder （ 4-cylinder ） , Vertical, Water Cooled and Four Stroke | |||||
12 Hour Power (kw) | 33.1 | 36.8 | 38.2 | 40.4 | ||
Rated Rev. (rpm) | 2300/2400 rpm | |||||
Fuel | Diesel Oil | |||||
Tyre | Front Wheel | 6.00-16/8.30-20 | ||||
Rear Wheel | 12.4-28 | |||||
Clutch | Dry-friction, Double Stage, Constant Engagement | |||||
Steering | hydraulic steering | |||||
Transmission Box | 2 Shaft 4 × (2+1) Gear Shifts, Joggling Sleeve Gear Shifting | |||||
Suspension Type | Catalogue I, Post-positioned Tri-point Suspension Catalogue II, Post-positioned Tri-point Suspension | |||||
PTO Shaft | Type and Rev. | Semi-independent Type, 540/1000rpm or 720/1000rpm | ||||
Spline Size | I 35 Type or I 38 Type or II 35 Type | |||||
Structure and specification are subject to change without notice.
- Size: 2500*1170*1240
- Place of Origin: China
- Brand Name: WEITUO
- Model Number: AOYE40-65HP
- Weight: 1300.000 kg
